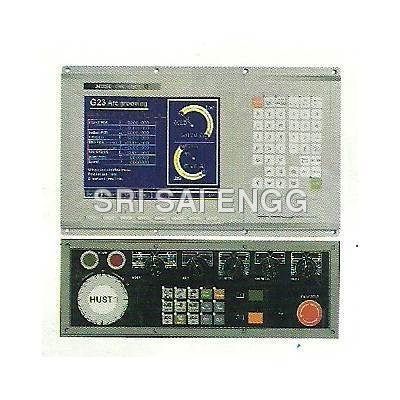

| Powerful control with user-friendly operation
• Cut parts the first day with straight-forward operation.
• Available in 5.6" or 10" monitor.
• Machine parts not possible with other controls.
• Get more work through a machine with faster setups.
• Produce parts with a better surface finish.
• Spend less time programming and more time making chips.
• Bring in more work and bid on higher paying jobs.
• USB memory module avaliable SR232 port Useful Tools for quicker job turn around
• Stop and restart the job at any point.
• Stop, make any adjustments, and restart right where you left off.
• Toolpath Graphics show you the cutter path before & while running the job.
• On-the-fly override control of feeds and speeds.
• Useful Help Screens guide you through Setup and Programming.
• Large Color LCD display is easy to read.
• Run large part programs with no limitations.
• High Speed processing provides smooth machining, no gouging.
• Fast, smooth continuous tool motion, no hesitation or dwell. Dedicated control panel for all common Milling functions
• Clearly labeled controls for each axis and direction.
• Dedicated buttons for spindle and coolant controls.
• Spindle speed override and Feedrate override.
• Tool Check, Feed Hold, Cycle Start, Rapid override,
Incremental and Continuous Jog, Single Block.
• Customize with Tool index +/-, Clamp/Unclamp, Vac on/off, & more.
• Extra auxiliary buttons are programmable for special applications.
• Fully sealed, coolant proof, long-lasting in shop environment.
• Tactile feedback, raised buttons with distinct action.
• Indicator lights show the selection made | Conversational Programming is fast and easy
• Program parts right at the control or offline with your desktop PC
• Convert geometry from DXF files to Intercon operations. Supports contouring, pocketing, framing, drilling, boring, tapping, & threading.
• Software generates the G codes for you.
• Help screens for all the common milling cycles,
just fill in the dimensions. Even lines and arcs are canned cycles.
• A graph of the part shows your work as you go. Graph at any point.
• Automatic pocket cleanout, Intercon auto creates the
roughing and finish passes automatically.
• Fill in the blank: Threadmilling, Drilling, (3 types of cycles), Tapping (Rigid, Rigid peck tapping, Floating), Pocketing, Facing, Auto connect radius, Lines, Arcs, Math Help, Teach in and much more! 5 Axis CNC control. Up to 8 axis avaliable
NEW! True 5 axis machining is now available. Smooth, consistent 5 axis motion. Great for either gimble table setups or knuckle head machines. X,Y,Z,A and B motion all at the same time or in any combination. For Milling machines and CNC routers. |
